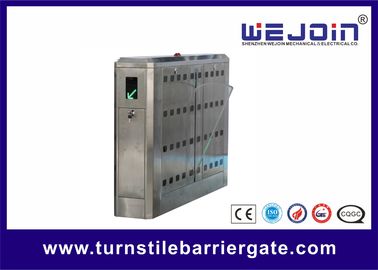

0.5s Aluminum Alloy Core 600mm Flap Barrier Gate Turnstyle Gates for Card Reader

বেসিক ইনফরমেশন
Place of Origin: China
পরিচিতিমুলক নাম: WEJOIN
সাক্ষ্যদান: ISO
Model Number: WJTY202
Minimum Order Quantity: 1set
মূল্য: Negotiation
Packaging Details: WOODEN
Delivery Time: 3-7DAYS
Payment Terms: T/T, Western Union
Supply Ability: 3000 SETS
বিস্তারিত তথ্য
Close Opening Time: 0.5s Housing Finished: Stainless Steel
Flap Speed: Adjustable Flap Material: Oganic Glass
Infrared Photocell: Yes Customized products: Yes
Safety: Yes Opening/closing time: Adjustable

পণ্যের বর্ণনা


0.5s Aluminum Alloy Core 600mm Flap Barrier Gate Turnstyle Gates for Card Reader


Functions:



1. A compact electric and mechanical design with unique drive which ensure product durability and silent operation, and its self-lock mechanism can also well protect the access control security.



2.WEJOIN flap barrier barriers have automatic detection for malfunctions, which will be convenient for customer to maintain and operate.



3.WEJOIN flap barrier barriers have input interface that are available for dry contact and switch signal connections. So that customers can integrate the flap barrier with different system, like card reader, ticket system, token system etc.



4.WEJOIN flap barrier barriers have auto delay closing function, after the flaps open if no pedestrian passes in a fixed time, the system will cancel the order and the auto-delay closing time is adjustable. The press button 1 and button 2 can adjust the delay closing time.



5.WEJOIN flap barrier barriers can be integrated with fire control device, which allow the release on emergency for security consideration.

0.5s Aluminum Alloy Core 600mm Flap Barrier Gate Turnstyle Gates for Card Reader

6.WEJOIN flap barrier barriers have audible and visual alarm in case of unauthorized access, which can strengthen the entrance security.



7. Infrared photocells for safety access



8. Anti-reversing passing



9. Auto closing when power on



10. Auto open and free access when power off



11. Adjustable access directions



13. Traffic light indicating passenger access



14. Battery is needed


Products Series

                  Model
Item

WJTY201

WJTY301

WJTY311



WJTS111

Material of Housing

304 Stainless Steel



Material of Flap Door

Organic Glass, Resin, or PVC



Iron with powder

Dimension of housing

1200*270*1000

1450*315*1020

1400*305*1020



420*380*1050

Thickness of housing

1.5mm



Max Width of Passage

600

900

900



Net weight

70kg

140 kg

85 kg



45 kg

Normal Life Span

3 millions times



Communication Interface

Standard RS485(distance less than 1200 meters)



Transit speed

30-40 persons/min



Power supply

220V±10%, 110± 10%



Frequency

50/60HZ



Working voltage of motor

DC24V



Time for opening or closing

1s



Starting time after power on

3s



Input interface

Dry contact signal or +12Vor pulse signal with width more than
100ms DC12V




Transit speed

25~32 persons/min



Working temperature

-10°C~50°C



Working environment

Indoor / Outdoor (Shelter)



Relative humidity

≤95%, no condensation
